Specifications

Power supply: 90-265VAC 50Hz/60Hz
Standby power: <0.36W
Maximum load: 1200W Max. (220-240VAC)
600W Max. (100-130VAC)
Microwave frequency: 5.8GHZ±75MHZ
Microwave power: <2mW
Surge current: 50A/500μS

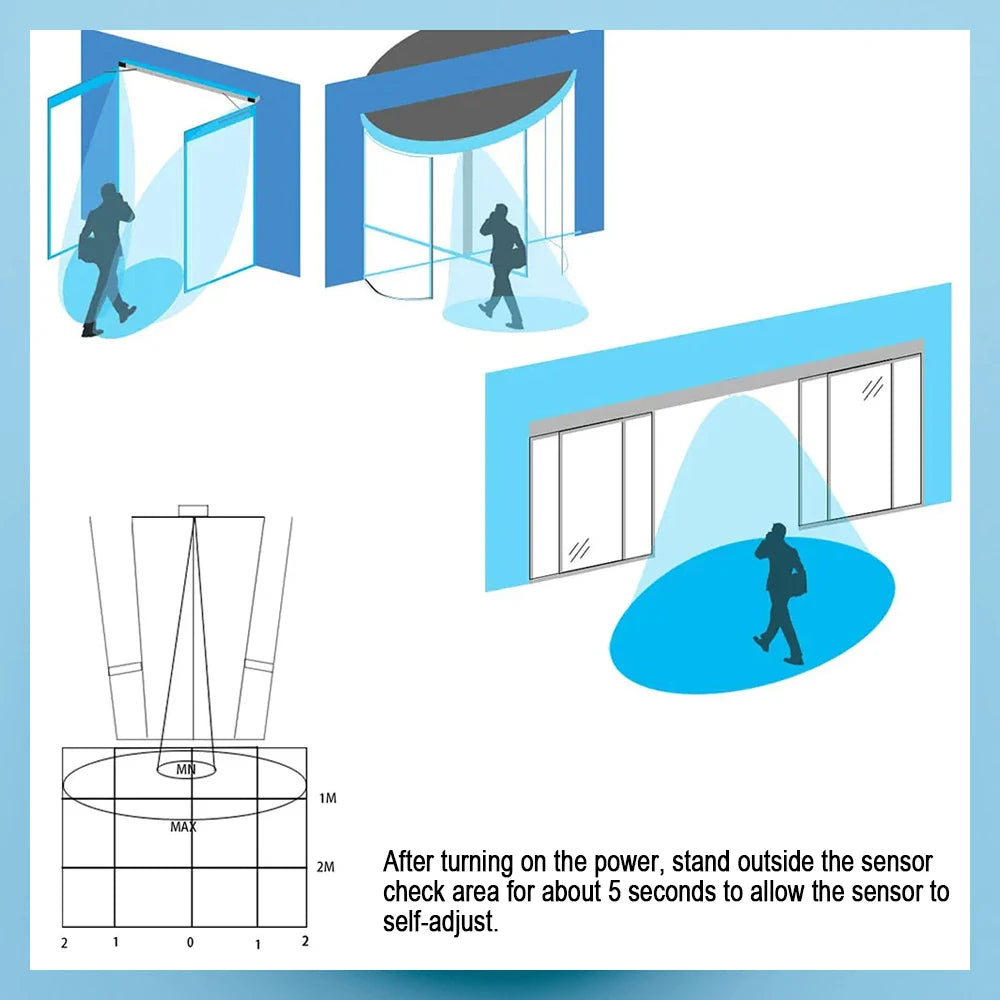

Detection angle: 110° _ 120°
Working temperature: -20 _ +80°C
Working humidity: ≤93%RH

Application

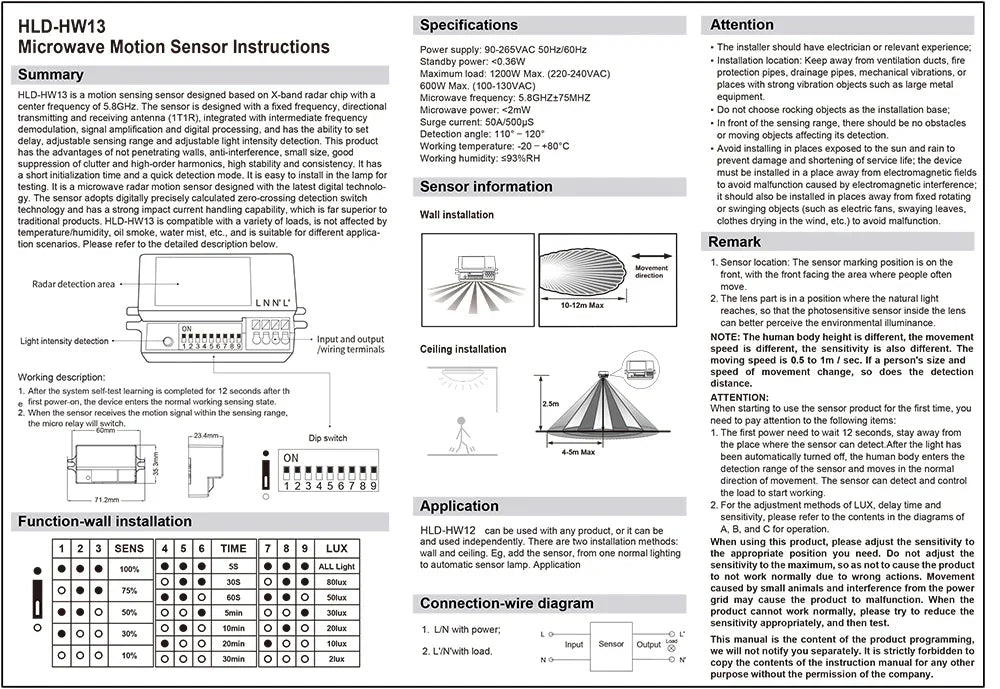

HLD-HW13 is a motion sensing sensor designed based on X-band radar chip with a
center frequency of 5.8GHz. The sensor is designed with a fixed frequency, directional
transmitting and receiving antenna (1T1R), integrated with intermediate frequency
demodulation, signal amplification and digital processing, and has the ability to set
delay, adjustable sensing range and adjustable light intensity detection. This product
has the advantages of not penetrating walls, anti-interference, small size, good
suppression of clutter and high-order harmonics, high stability and consistency. It has
a short initialization time and a quick detection mode. It is easy to install in the lamp for
testing. It is a microwave radar motion sensor designed with the latest digital technology. The sensor adopts digitally precisely calculated zero-crossing detection switch
technology and has a strong impact current handling capability, which is far superior to
traditional products. HLD-HW13 is compatible with a variety of loads, is not affected by
temperature/humidity, oil smoke, water mist, etc., and is suitable for different application scenarios. Please refer to the detailed description below.

Working description:

1. After the system self-test learning is completed for 12 seconds after th
e first power-on, the device enters the normal working sensing state.
2. When the sensor receives the motion signal within the sensing range,
the micro relay will switch.

Application

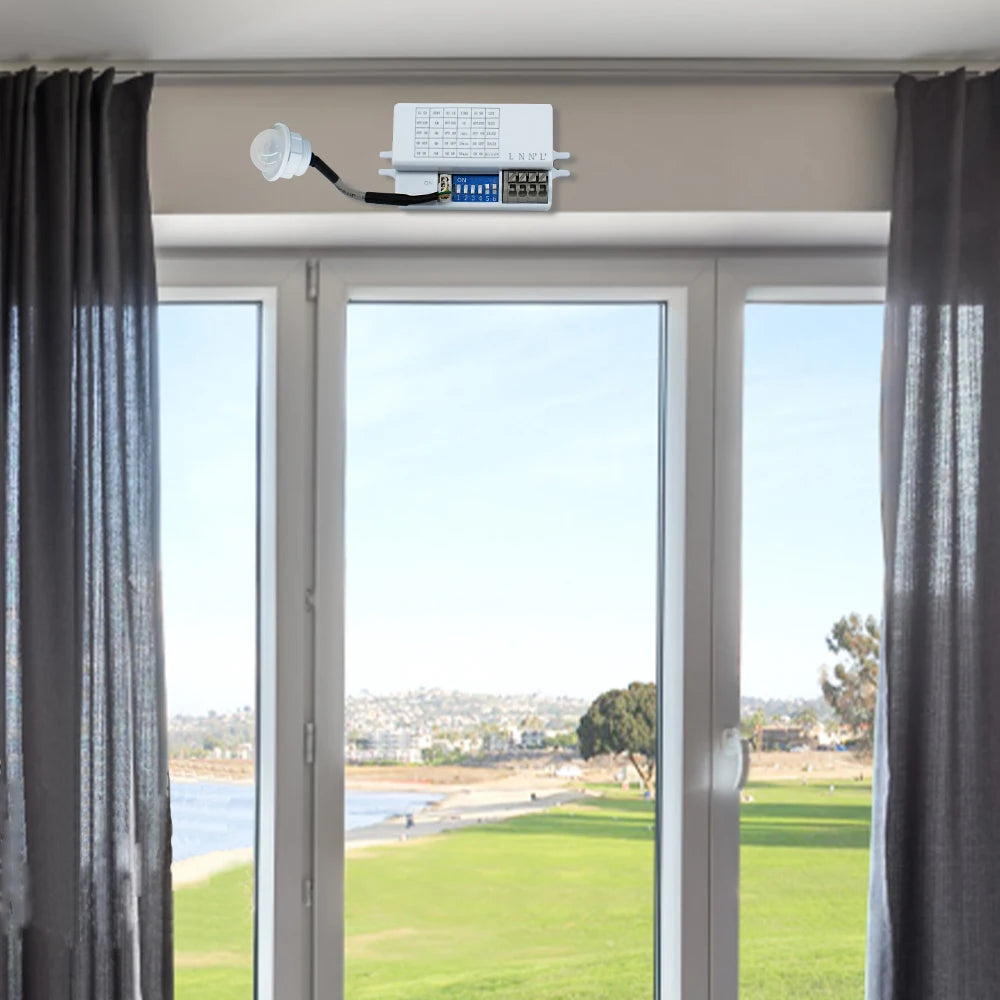

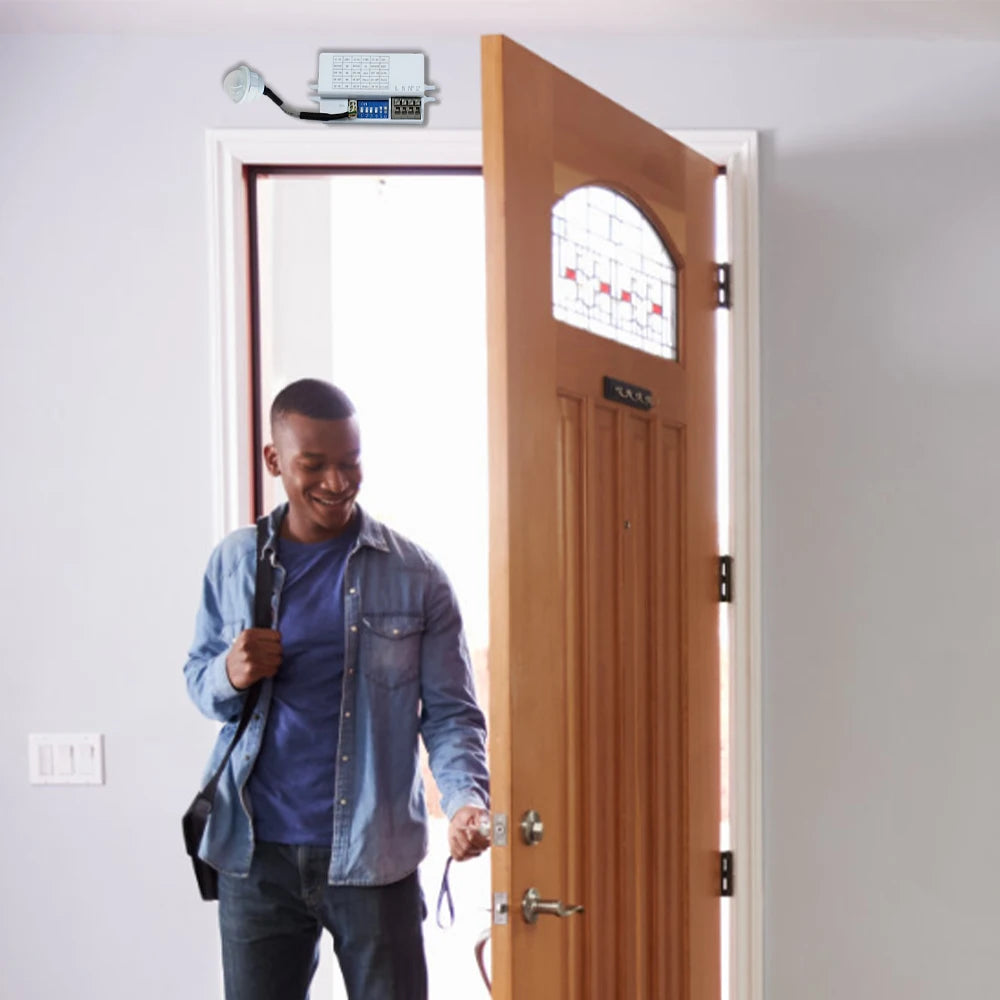

HLD-HW12 can be used with any product,or it can be
and used independently. There are two installation methods:
wall and ceiling. Eg, add the sensor, from one normal lighting to automatic sensor lamp.
