SPECIFICATIONS

Brand Name: WeeTisa

Certification: ce,CCC,ROHS,LVD,EMC

Choice: yes

Current: 5A

DC Connector Type: 5.5*2.1mm DC Pressing Wire Connector

Delay Time: 15s-5 mins (Adjustable)

Feature 1: 12V Motion Sensor

Feature 10: PIR Motion Sensor Switch

Feature 11: Motion Sensor Switch with Timer

Feature 12: Motion Sensor Switch 5V

Feature 2: Movement Sensor

Feature 3: PIR Sensor 12V

Feature 4: Motion Sensor Switch

Feature 5: Lamp Timer

Feature 6: Light Switch 12V

Feature 7: Motion Sensor Timer

Feature 8: DC 5V PIR

Feature 9: LED PIR Motion Sensor Switch Adjustable

Features: PIR Switch

High-concerned chemical: None

Induction Range: 5M

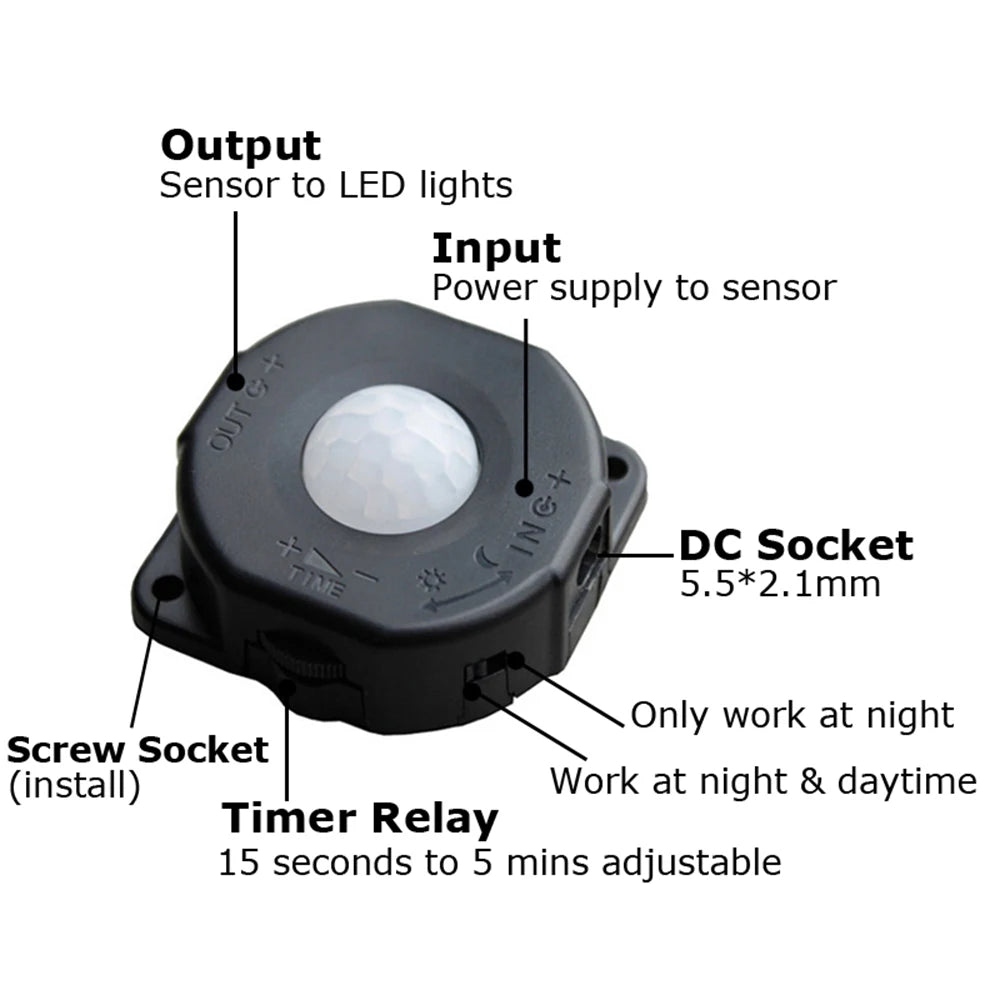

Input & output Voltage: 5-24V DC

Item Type: SWITCHES

Material: Plastic

Max Load Current: 5A

Model Number: 12V Motion Sensor

Origin: Mainland China

Switch Type: Sensor Switch

Warranty: 1 Year

semi_Choice: yes

Motion Sensor Light Switch DC 5V 12V 24V Movement Automatic Infrared 12V Sensor Motion Adjustable Timer Detector LED PIR Switch

Features:

Made of high quality plastic.

Easy to install and simple to use.

Adjust the light soft and stable, no flickering.

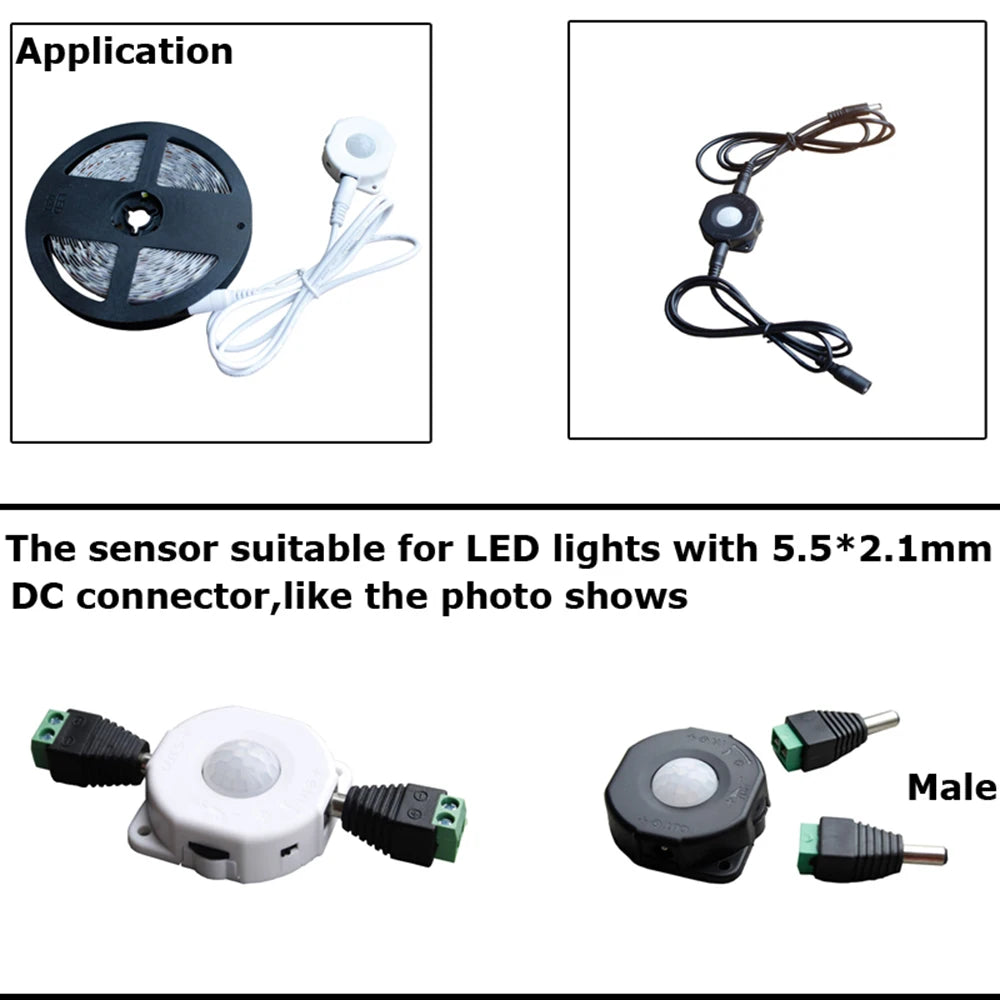

Mainly use to control LED light lamps and LED Strip.

You can conveniently to let the light auto on/off    ,Built in light sensor which can identity day and night by itself.

The switch can detect human body's infrared, and use infrared to control the load.

Users according to actual needs, the human body sensors installed in the appropriate environment.

Suitable for incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads.

Note: If you test it,please kindly test in dark environment.  Meanwhile,please kindly check the "Input" and "Output" before powering on.  Or the lights will be not working properly.

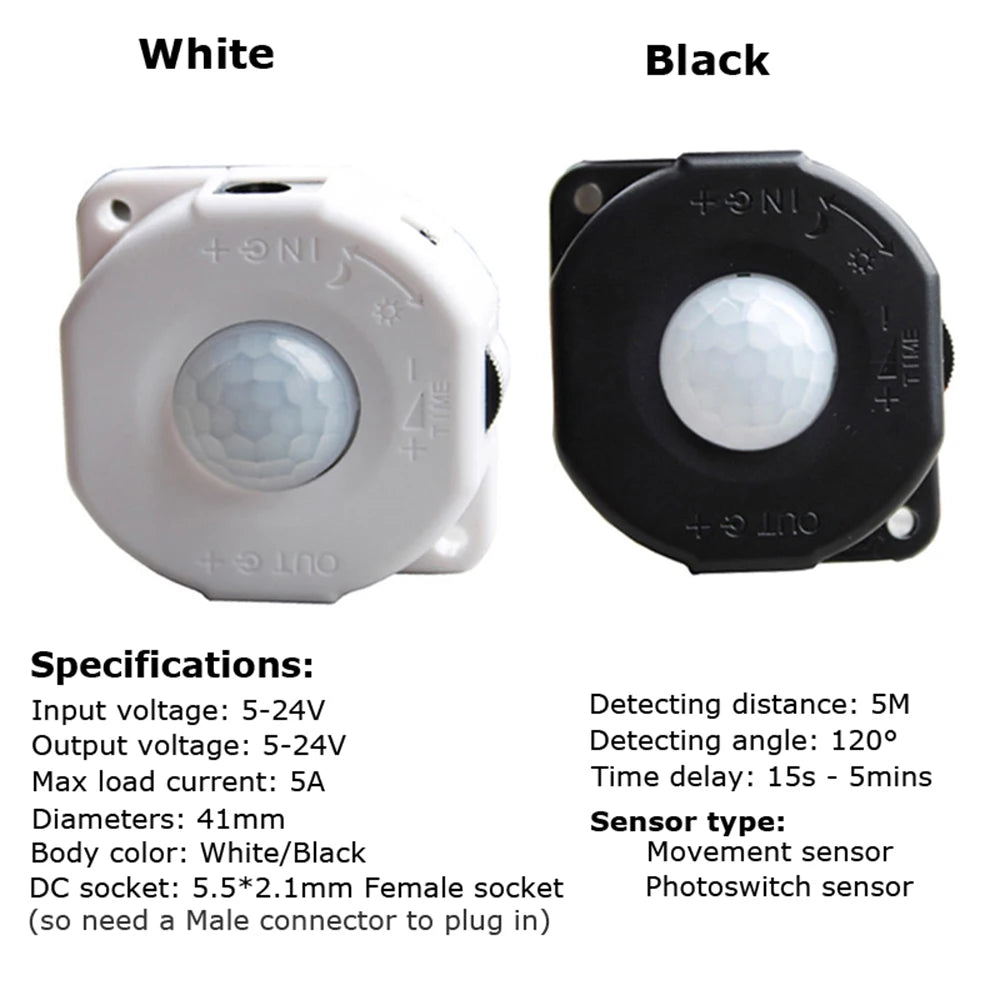

Specifications：



Condition: New Brand

Material: Plastic and metal

Body Color: Black/ White (as pictures shows,Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!)

Type: Pir Switch / Photoswitc

Working Temperature: -20 to +60 °C

Input Voltage: 5-24V DC

Output Voltage: 5-24V DC

Induction Distance: 5M

Induction Angle: 120 degrees

Output Current: <5A

Delay Time: 15s- 5min(adjustable)

Dimensions: Diameters 41mm     (Size:55*41*15mm,Screw hole diameter 3mm)

Gross Weight: Approx. 50g

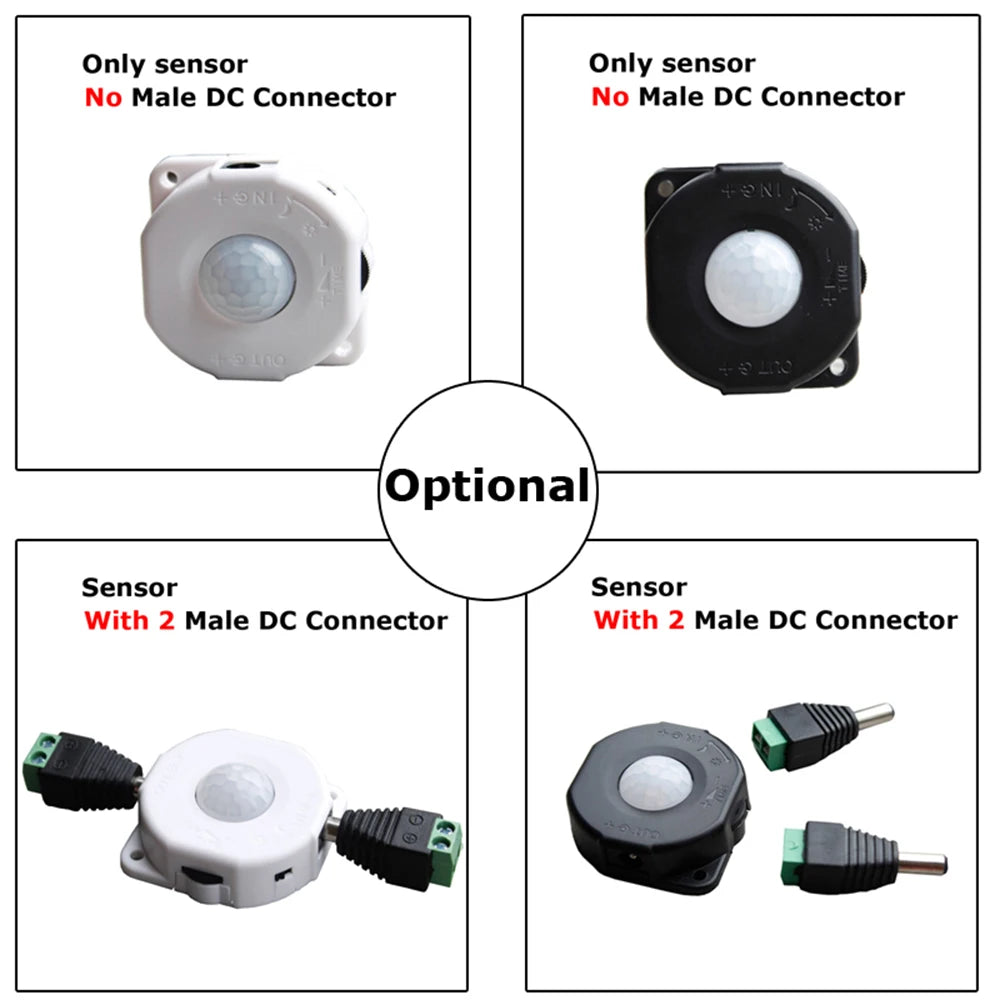

Package Included:



1 * Motion Sensor only

Or

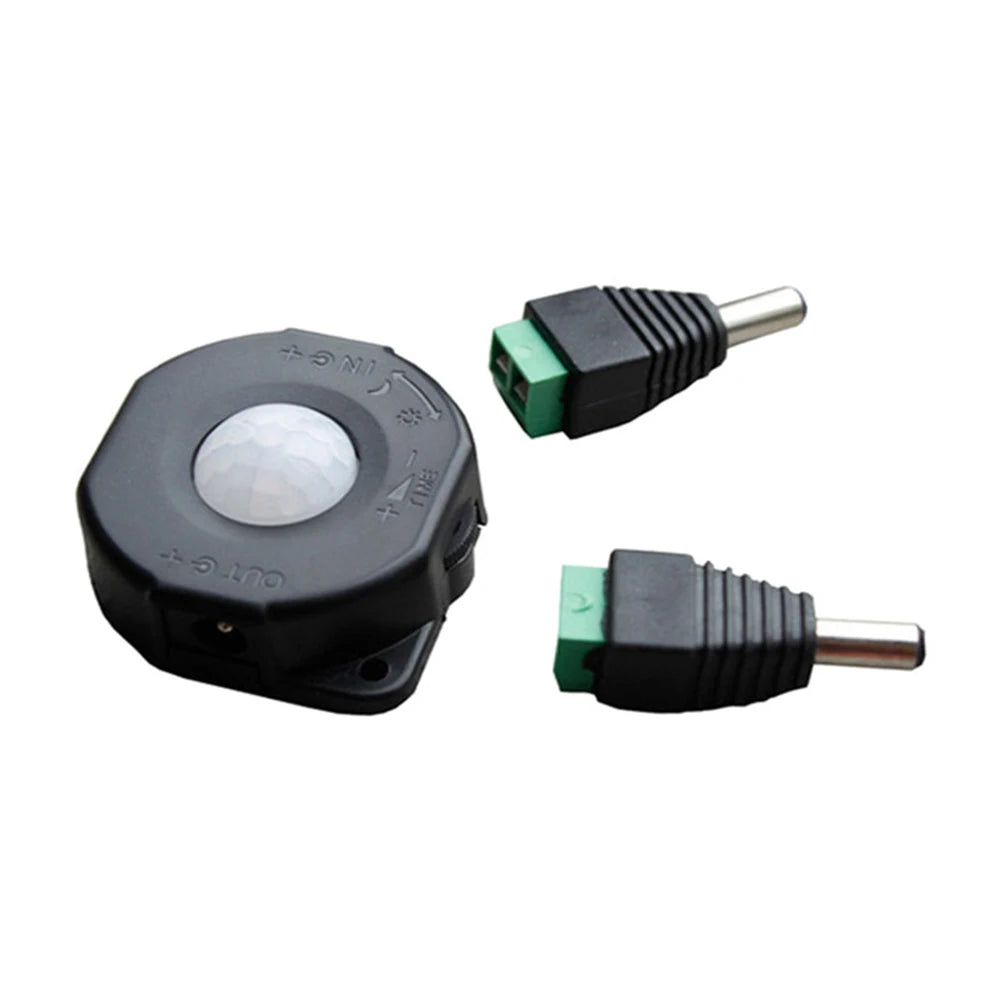

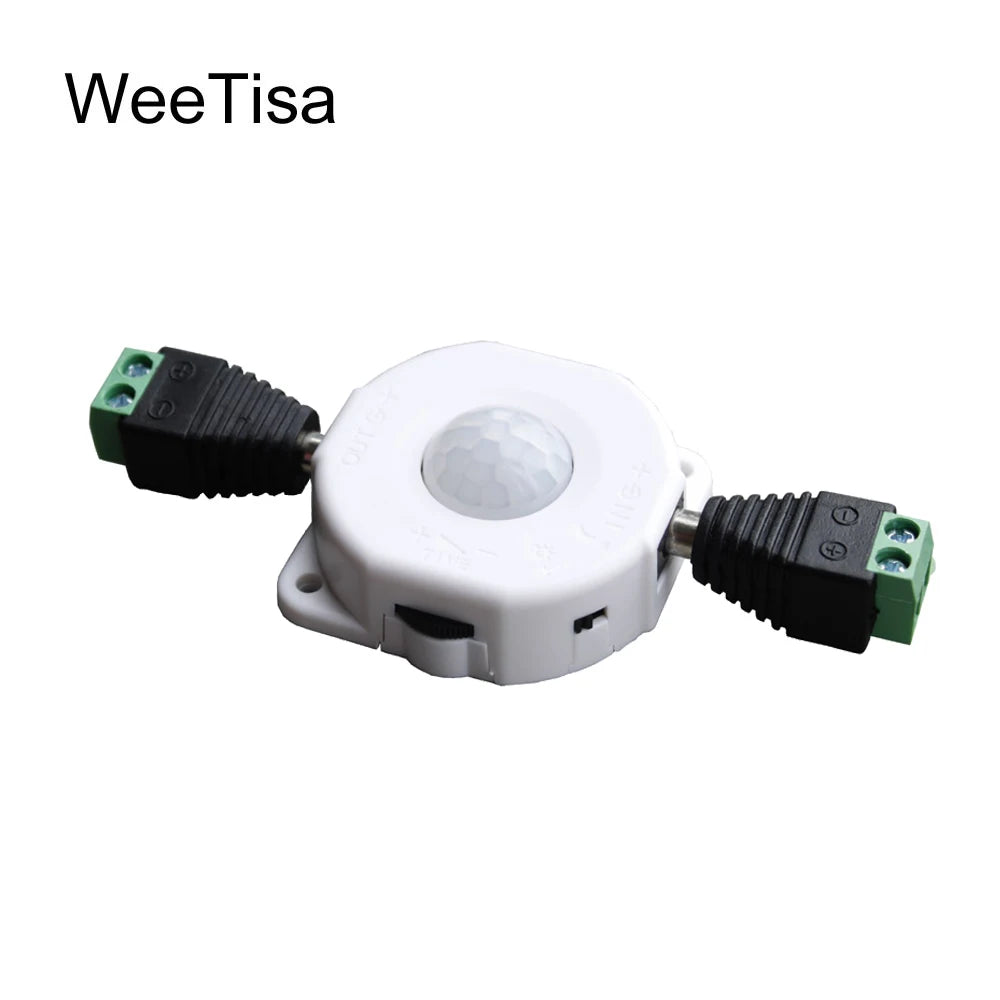

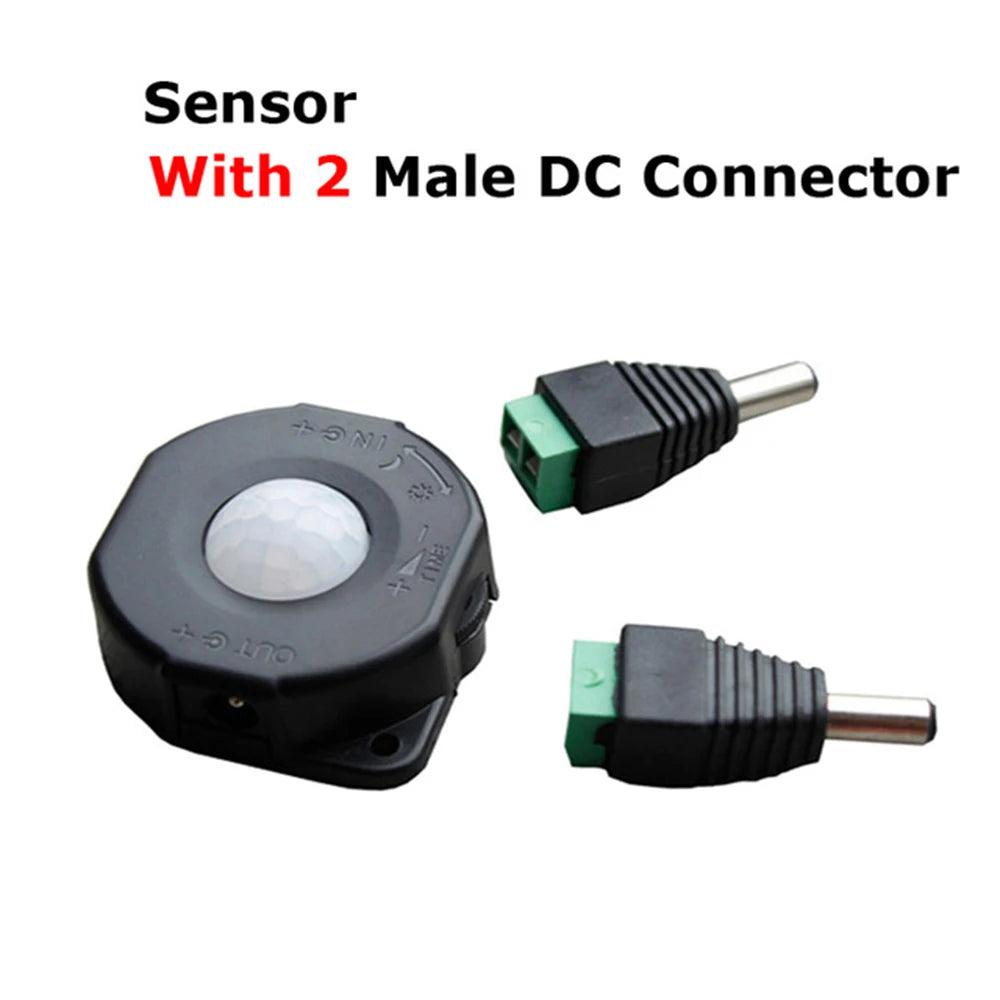

1 * Motion Sensor

2 * DC Connectors
